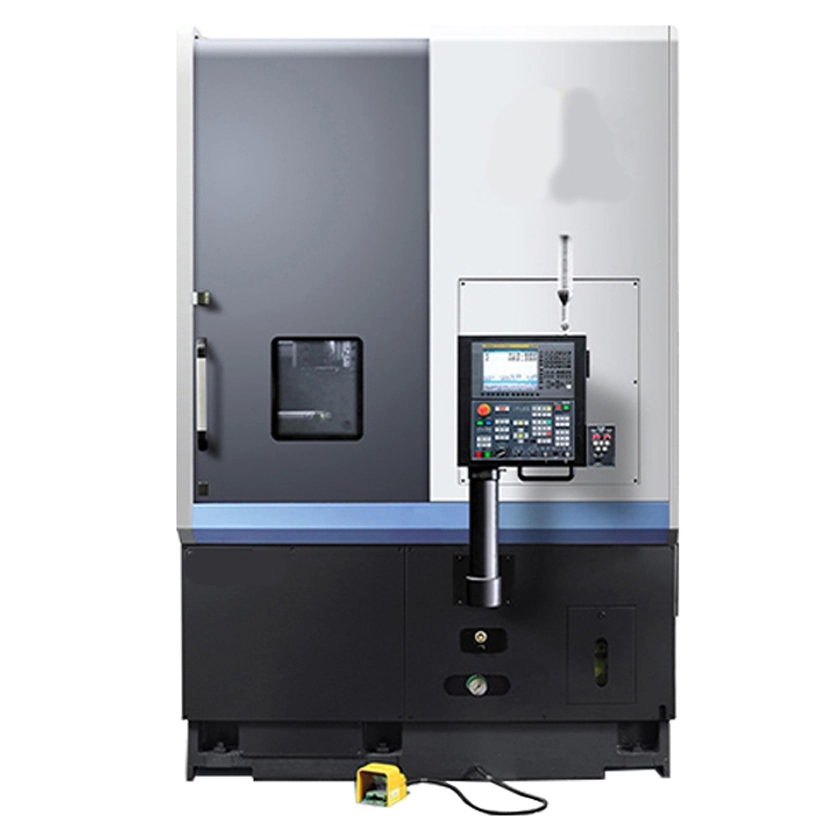

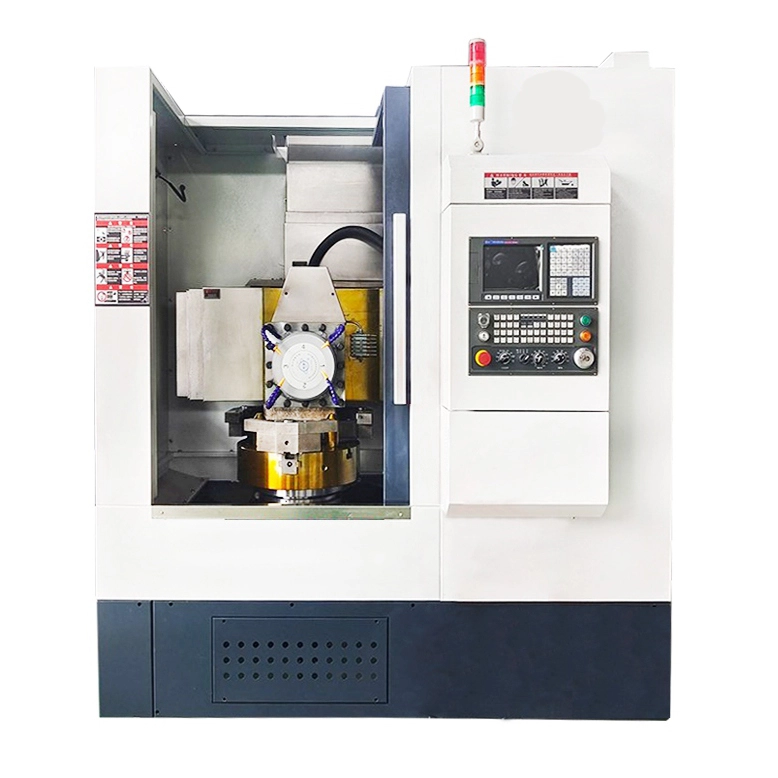

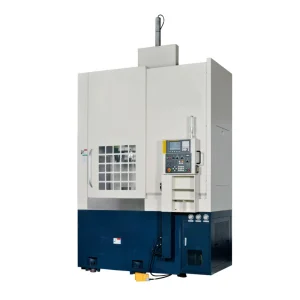

Custom-designed Large-diameter Disc-shaped Part CNC Vertical Lathe, High-rigidity Heavy-duty CNC Vertical Lathe
| ITEM | VALUE |
| Max. length of workpiece (mm) | 470 |
| Max. weight of workpiece(kg) | 6000 |
| No. of spindles | Single |
| Travel (x axis)(mm) | 600 |
| Travel (z axis)(mm) | 600 |
| Positioning accuracy (mm) | ±0.06 |
| Repeatability (x/y/z) (mm) | ±0.003 |
| Place of origin | China |
| Type | VERTICAL |
| Number of axes | 2 |
| Dimension(l*w*h) | 2100*2500*2750mm |
| Tool post stations | 8 |
| Weight | 6500 |
| Key selling points | High-Accuracy |
- Fast Shipping
- Support OEM&ODM
- TOP Quality
- Professional Service
DESCRIPTION
Product Description

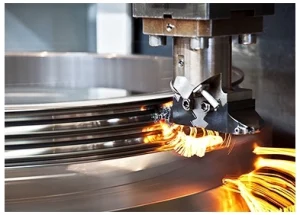

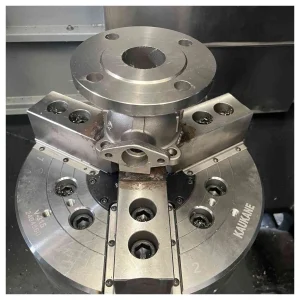

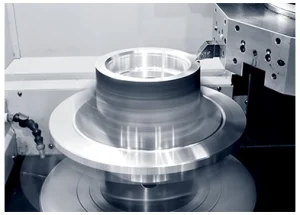

CNC vertical lathes have a wide range of applications, including aerospace, medical equipment, energy, transportation, automobile manufacturing, mold making, heavy machinery manufacturing, and new energy, among many other industries and fields. They can process gearboxes, clutch housings, engine cylinders, crankshafts, gearboxes, transmission gears, disc-shaped parts, pulleys, and other components.
CNC System: The CNC system can be equipped with FANUC, SIEMENS, HNC, and other CNC systems for precise motion control and process adjustment, improving production efficiency.

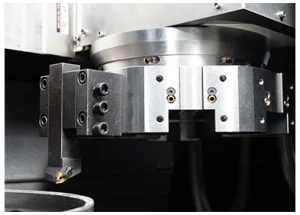

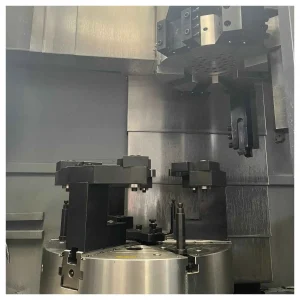

Servo Turret: The CNC vertical lathe can be equipped with a vertical 4/6-position or horizontal 8/10/12-position tool post. The tool holder’s internal structure uses a cam design.

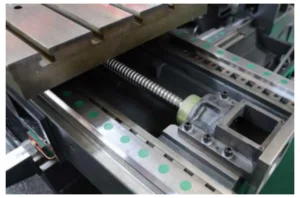

Linear Guide Structure: Utilizing a high-rigidity structure and precision linear guides, and through finite element calculations and optimized design, the size of the CNC vertical lathe has been reduced while its rigidity has been improved.

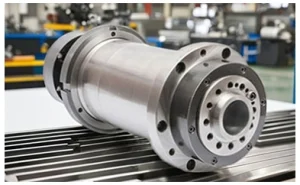

Spindle: The CNC vertical lathe employs a high-speed, high-precision, and high-rigidity modular assembly structure. The spindle bearings use NN series bearings to ensure the rigidity and strength of the spindle unit.
Company Profile
Our main products are industrial equipment, including packaging machinery, filling machines, rubber machinery, and machine tools. We have our own production workshop and can provide a one-stop service from design, mold making, sampling, testing, production to export. We also offer free on-site installation, a 2-year free warranty, a 24-hour local service team, and product customization support. Furthermore, we plan to recruit distributors in several countries. We provide the products and customer resources, while distributors provide store locations and assist with after-sales issues.
