Product Description

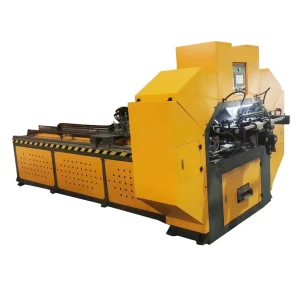

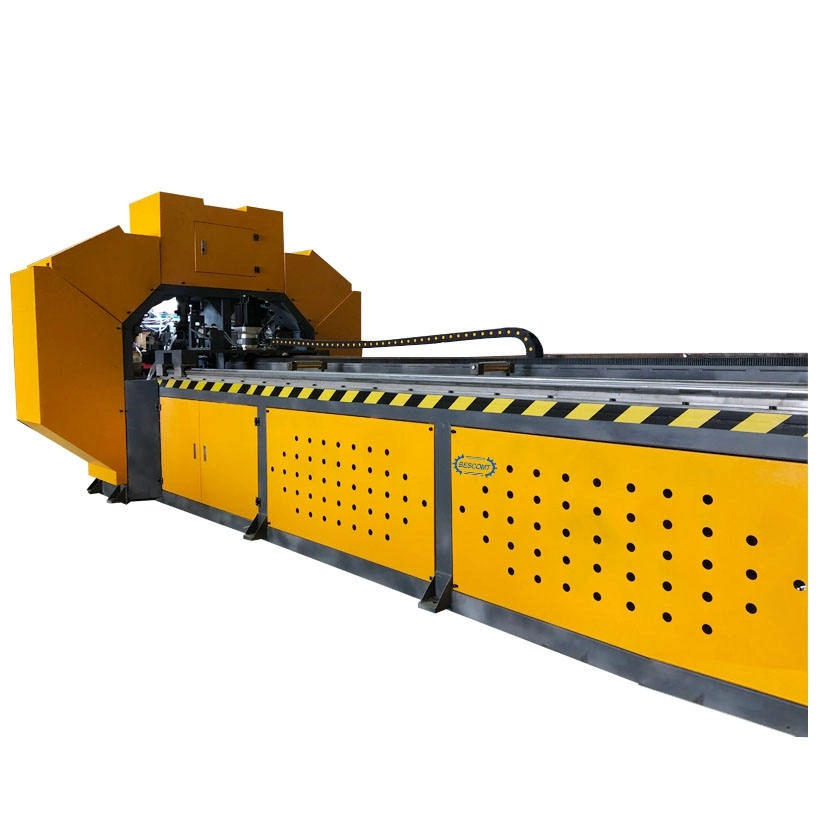

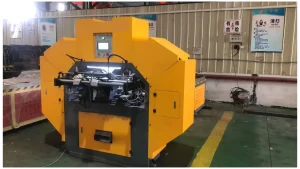

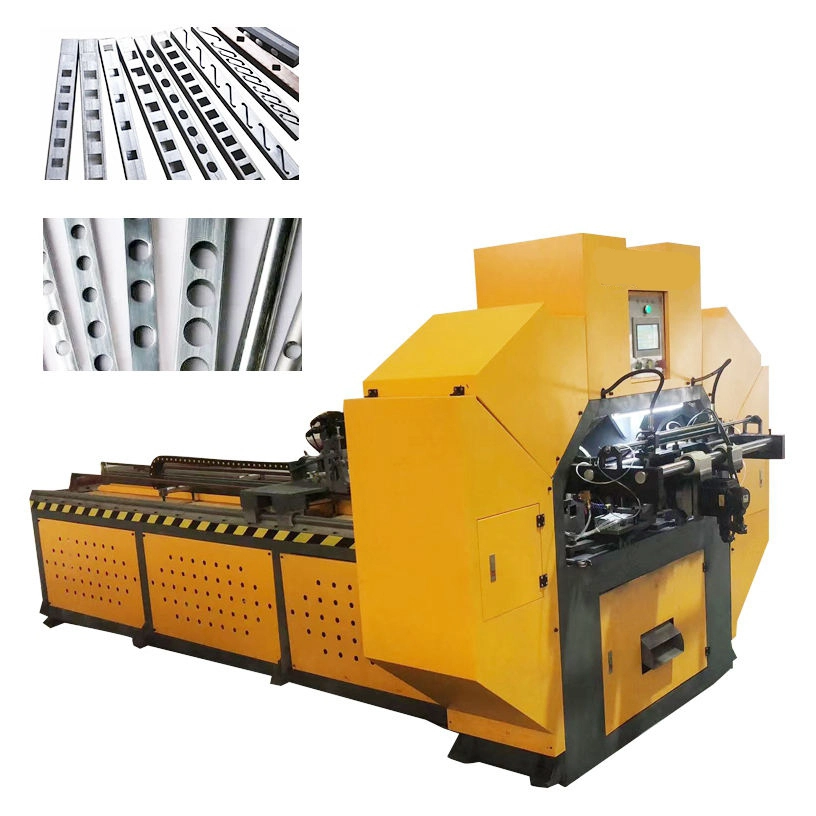

Hydraulic round and square tube double-line punching machine, automatic CNC tube hole punching machine, fully automatic CNC tube punching machine with imported servo motor for automatic feeding, accurate pitch, human-machine interface, and simple operation. It is an ideal machine for galvanized steel guardrails, anti-theft nets, and shelving industry.

Features: Smooth punching, burr-free, and non-deformable. Semi-single-hole punching, double-hole punching, equidistant hole punching, non-equidistant hole punching, rotary punching; both single and full holes are available, and hole shapes can be customized upon request.

1. Touchscreen settings, CNC control system, precise servo motor positioning, module storage memory function, equipped with hydraulic and servo systems.

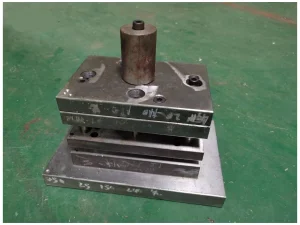

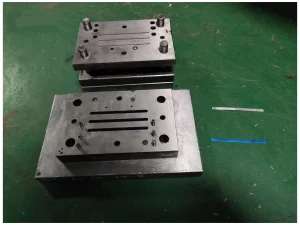

2. Die changing: Die changing is easy without adjustment, reducing die damage and pipe scrap rates due to die setting errors. Skilled workers can change dies within 10 minutes.

3. Stepless operation adjustment, zero-load hydraulic circuit design, combined with an ultra-low frequency oil pump motor, effectively reducing noise and increasing motor efficiency and service life.

4. When the cylinder moves downwards, the machine is designed with a hydraulic differential drive circuit rated at high or low RPM. It also features high-speed downward movement, low-speed processing, and high-speed position recovery. This increases the forming stability of the workpiece during piercing. In addition to increasing activation speed, it also effectively reduces HP load to save energy.

5. The electrical control system adopts a human-machine interface design, and the range adjustment uses a digital scale. It can set low-speed position and floor level position, making operation precise and convenient.

Company Profile

Our main products are industrial equipment, including packaging machinery, filling machines, rubber machinery, and machine tools. We have our own production workshop and can provide a one-stop service from design, mold making, sampling, testing, production to export. We also offer free on-site installation, a 2-year free warranty, a 24-hour local service team, and product customization support. Furthermore, we plan to recruit distributors in several countries. We provide the products and customer resources, while distributors provide store locations and assist with after-sales issues.

FAQ

1. Who are we?

We are located in Fujian, China. Since 2024, our products have been sold to North America (30.00%), Western Europe (10.00%), Southeast Asia (10.00%), South America (7.00%), Southern Europe (5.00%), Northern Europe (5.00%), Central America (5.00%), Eastern Europe (5.00%), East Asia (5.00%), the Middle East (5.00%), Oceania (5.00%), South Asia (5.00%), and Africa (3.00%). We have approximately 101-200 employees in our office.

2. How do we guarantee product quality?

We always provide pre-production samples before mass production;

We always conduct final inspections before shipment;

3. What can you buy from us?

Packaging machinery, filling machines, rubber machinery, machine tools, etc.

4. Why choose us instead of other suppliers?

With 20 years of design and R&D experience, we are one of the largest equipment manufacturers in China. We mainly produce industrial machinery, including packaging machinery, filling machines, rubber machinery, and machine tools.

5. What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express, DAF, DES;

Accepted Payment Currencies: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;

Accepted Payment Methods: Wire Transfer (T/T), MoneyGram, Western Union, Cash;

Languages: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian
