Model Number
XQY2.5-60-H12
Document
XQY2.5-60-H12.pdf
Motor Type:
AC Induction Motor
Rated Power(kW):
2.5
Battery Voltage(V DC):
60
Rated Speed(rpm)3000:
3000
Peak Speed(rpm):
6000
Rated Torque(N·m):
8
Work System:
S2-60min
Protection Level:
IP54
Insulation Level:
H
Application:
Electric Vintage Car,Electric Mobility Scooter
Highlight:
2.5 kw ac motor
,Electric Vintage Car ac motor
,2.5kW 3 phase ac induction motor

High Efficiency: This motor boasts ensuring optimal performance and energy savings for Electric Vintage Car.

Drip-Proof Protection:The motor is designed with drip-proof protection, safeguarding it against water and dust ingress, making it

suitable for harsh environments.

Three-Phase Operation: The motor operates on a three-phase system, providing stable and efficient power transmission for various applications.

Long-Lasting Performance: With a rated voltage of 60V and a working system of S2-60min, this motor is designed to provide long-lasting performance and durability.

Compliance with International Standards: This motor meets international standards for protection level IP54 and insulation class H, ensuring reliability and safety in various applications, including electric vehicles.

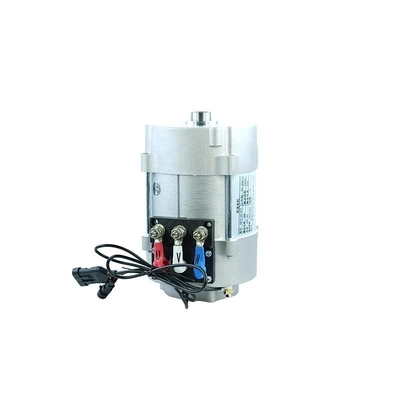

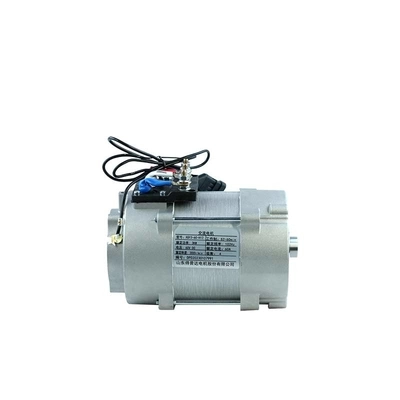

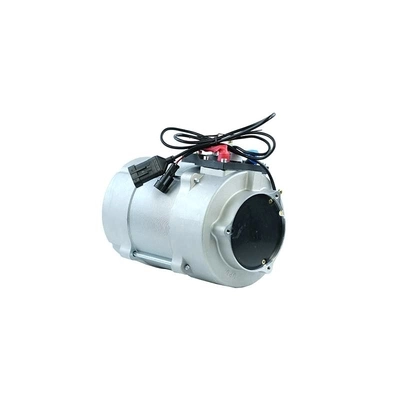

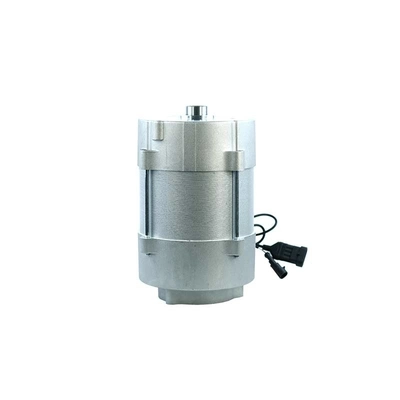

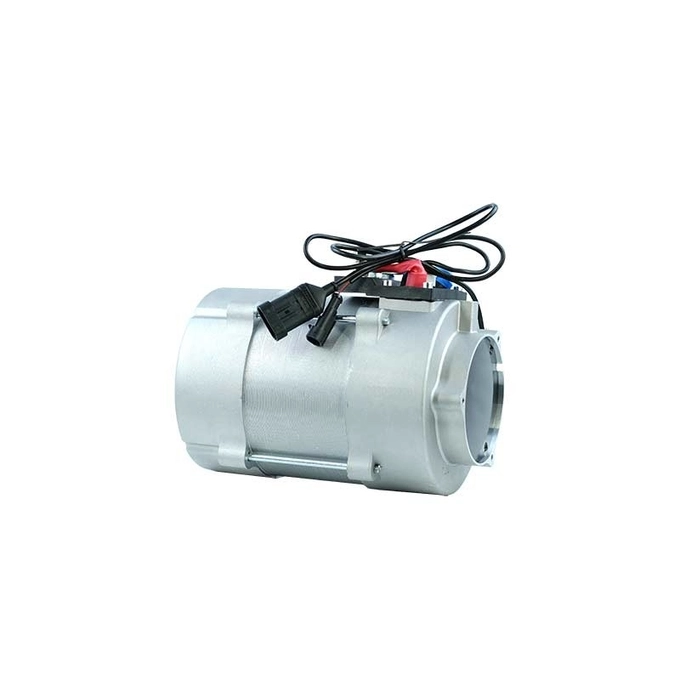

Motor parameter
Motor type:  AC Induction Motor
Model:  XQY2.5-60-H12
Rated voltage(V AC):  41
Battery voltage(V DC):  60
Rated power(kW):  2.5
Peak power(kW):  5
Rated torque(N·m):  8
Peak torque(N·m):  55
Rated speed(rpm):  3000
Peak speed(rpm):  6000
Insulation level:  H
Protection level:  IP54
Cooling method:  Natural cooling
Work system:  S2-60min
Number of pole-pairs:  2
Peak current(Arms):   275A
Main scope of application: Electric Mobility Scooter,Electric Vintage Car,Electric tricycle
