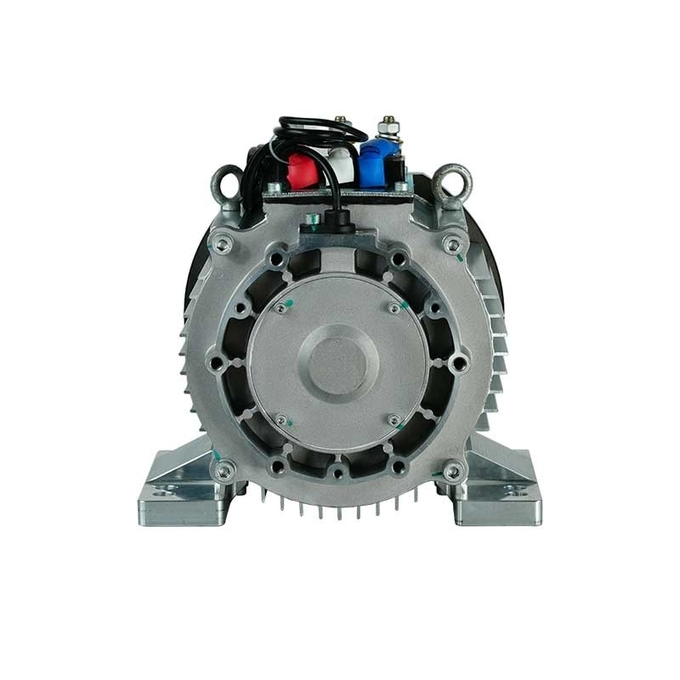

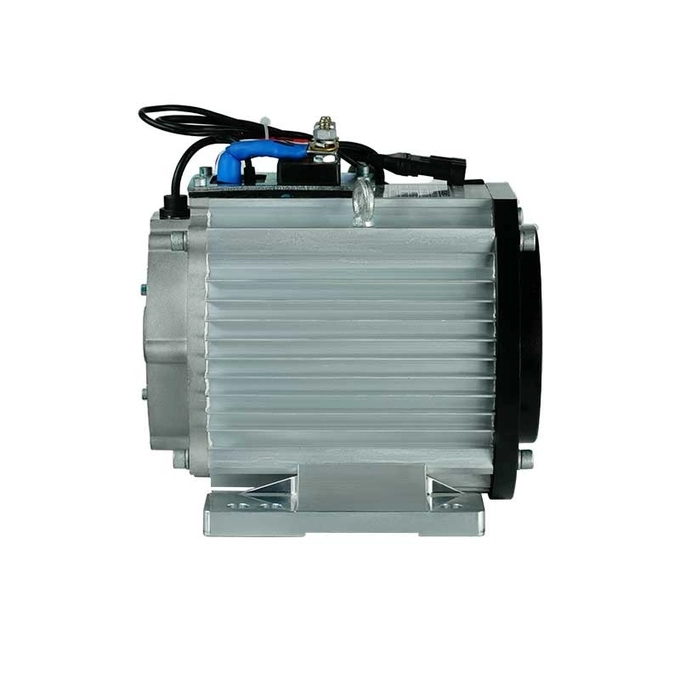

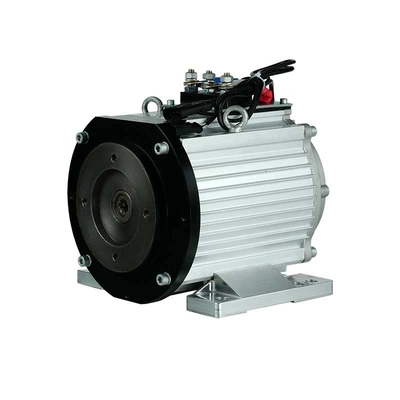

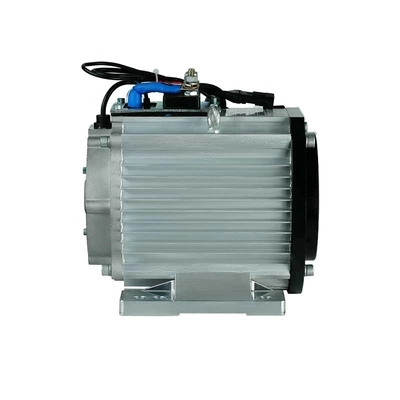

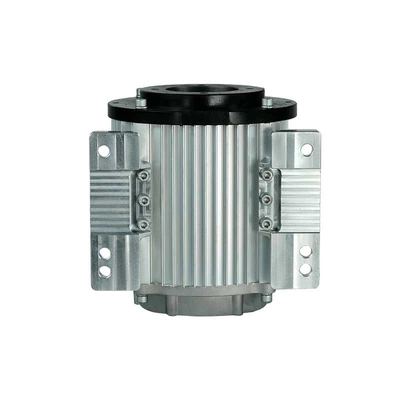

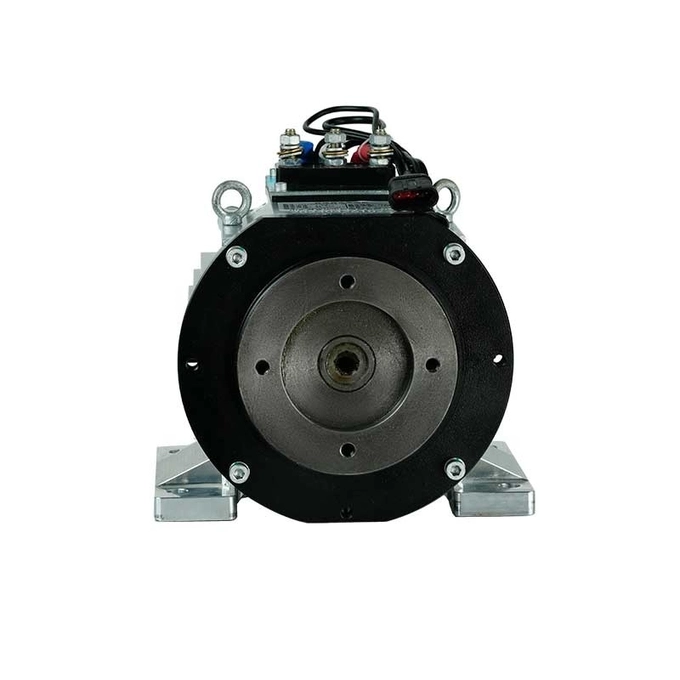

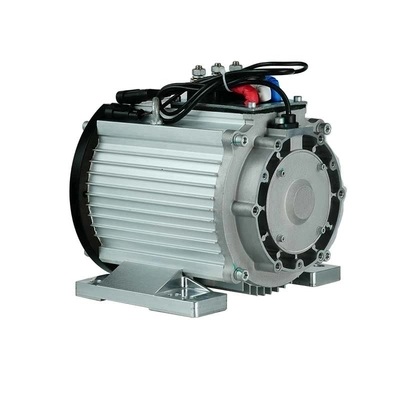

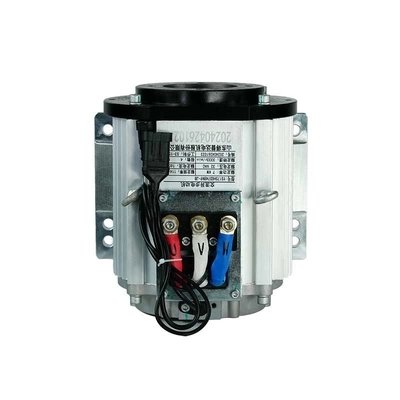

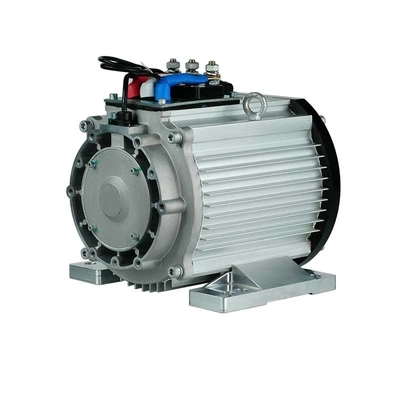

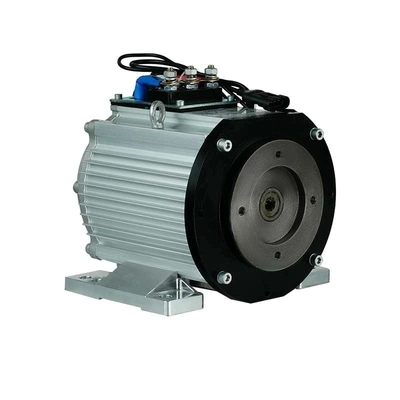

Energy-Saving 7kW AC Motor For Scissor Lift Platform

0 + Pieces sold in the past 30 days

Motor Type:
AC Induction Motor
Rated Power(kW):
7
Battery Voltage(V DC):
48
Rated Speed(rpm):
3333
Peak Speed(rpm):
6000rpm
Rated Torque(N·m):
20
Work System:
S3-15%
Protection Level:
IP54
Insulation Level:
H
Application:

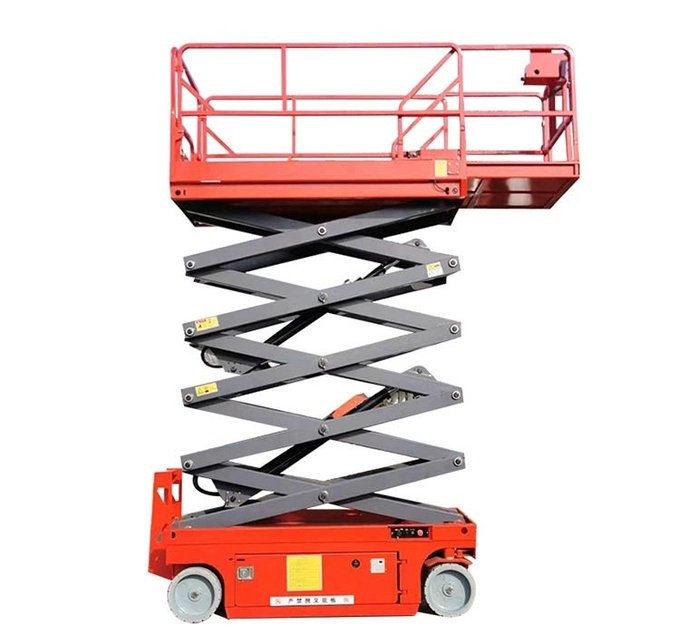

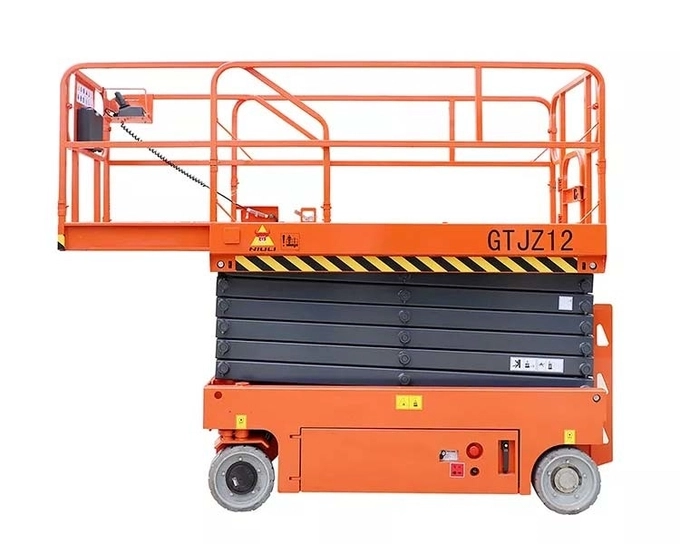

Scissor Lift,Scissor Lift Platform
Highlight:
7kW AC Induction Motor, Scissor Lift AC Induction Motor, 6000rpm AC Induction Motor

DESCRIPTION

High-Quality Performance for Reliable Operation
The Depuda 7kW AC motor is engineered for exceptional performance and consistent reliability, making it an ideal choice for sightseeing electric vehicles. Featuring a three-phase induction motor design, it ensures efficient energy transmission and smooth, uninterrupted operation.

Robust Durability and Protection
With an IP54 protection rating, this motor is resistant to dust and water, ensuring long-lasting performance and minimizing maintenance requirements over time.

Customizable Solutions for Various Applications
Designed for versatility, the Depuda 7kW AC motor is suitable for a range of applications, including scissor lift platforms. It can be tailored to meet specific user needs, offering flexible solutions for diverse industries.

Efficient and Powerful Operation
With a rated power of 7kW and a rated speed of 3333 r/min, this motor delivers efficient performance, making it a perfect fit for electric vehicles that require high power and reliability.

Comprehensive Warranty for Peace of Mind
The Depuda 7kW AC motor comes with a warranty ranging from 3 months to 1 year, ensuring that your investment is protected and providing peace of mind for users.

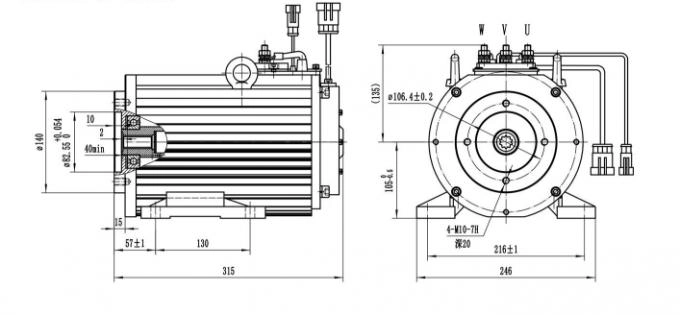

Motor parameter
Motor type: AC Induction Motor	Model: YS175HGD748N9-JB
Rated voltage(V AC): 32	Battery voltage(V DC): 48
Rated power(kW): 7	Peak power(kW): 12
Rated torque(N·m): 20	Peak torque(N·m): 60
Rated speed(rpm): 3333	Peak speed(rpm): 6000
Insulation level: H	Protection level: IP54
Cooling method: Natural cooling	Work system: S3-15%
Number of pole-pairs: 2	Peak current(Arms): 400
