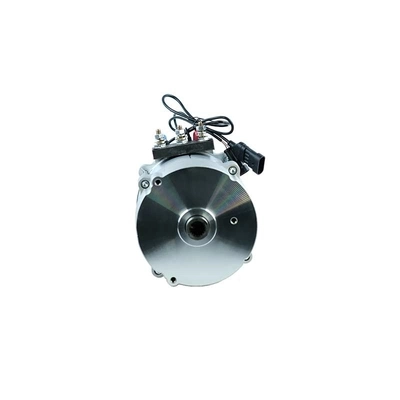

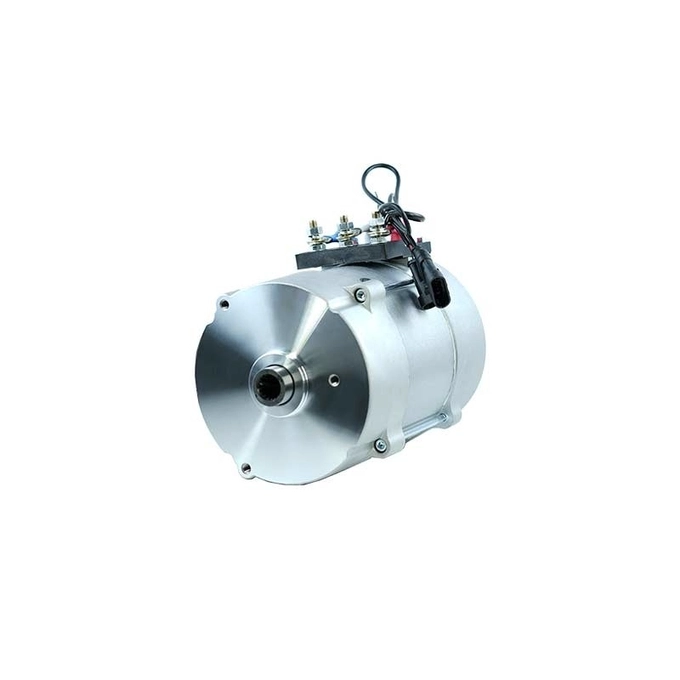

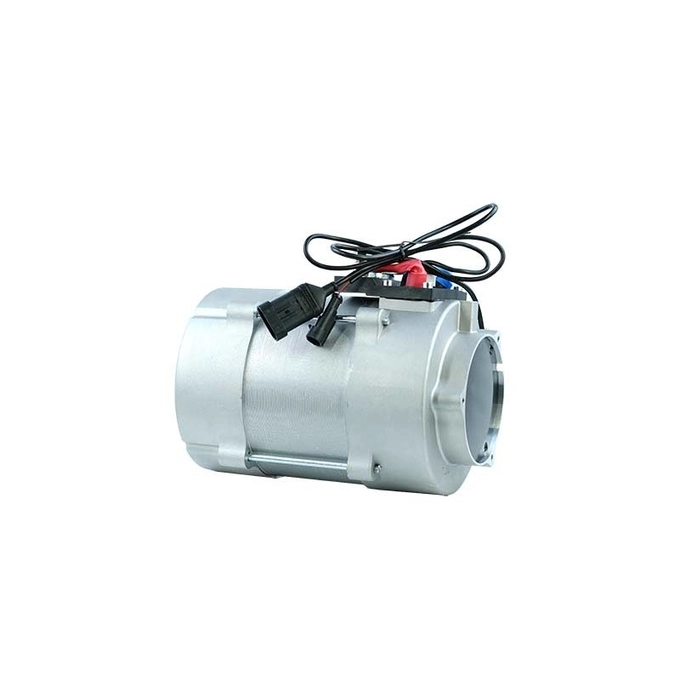

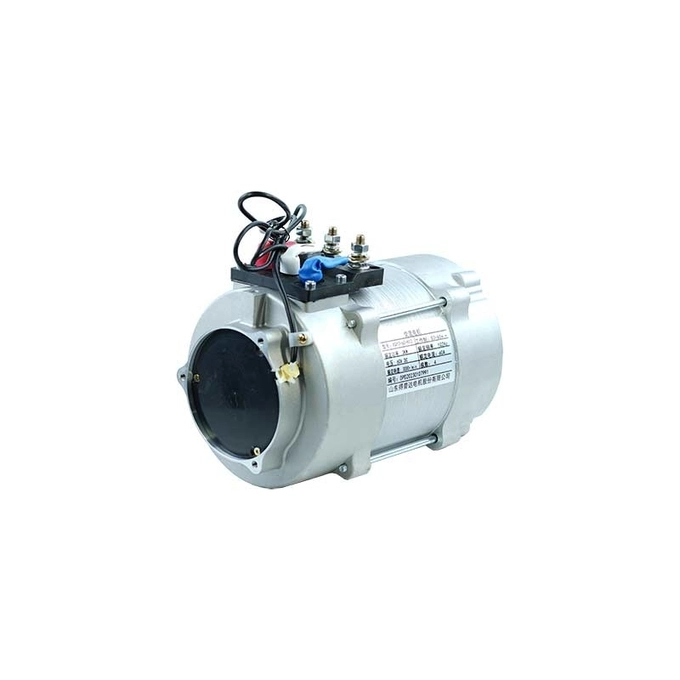

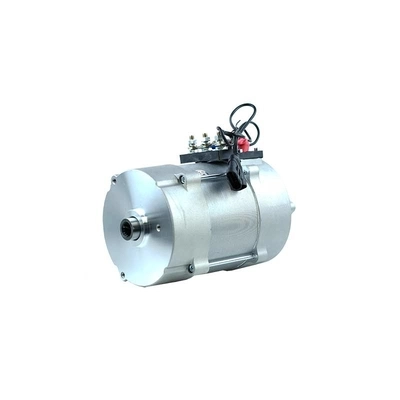

Green Power 3kW AC Motor For Electric Mobility Scooter

0 + Pieces sold in the past 30 days

MOQ:	50
Standard Packaging:	Packed in wooden case
Delivery Period:	7-10 work days
Payment Method:	T/T
Supply Capacity:	Three thousand units per day

DESCRIPTION

Place of Origin

China

Model Number

XQY3-60-H12

Document

XQY3-60-H12.pdf

Name:

Electric Mobility Scooter Motor

Rated Power(kW):

Battery Voltage(V DC):

Rated Speed(rpm)3000:

3000

Peak Speed(rpm):

6000

Rated Torque(N·m):

9.55

Work System:

S2-60min

Protection Level:

IP54

Insulation Level:

Application:

Electric Vintage Car,Electric Patrol Vehicle,Electric Mobility Scooter

High Efficiency: This motor boasts an efficiency of 83, ensuring optimal performance and energy savings for low-speed passenger electric vehicles.

Drip-Proof Protection:The motor is designed with drip-proof protection, safeguarding it against water and dust ingress, making it

suitable for harsh environments.

Three-Phase Operation: The motor operates on a three-phase system, providing stable and efficient power transmission for various applications.

Long-Lasting Performance: With a rated voltage of 60V and a working system of S2-60min, this motor is designed to provide long-lasting performance and durability.

Compliance with International Standards: This motor meets international standards for protection level IP54 and insulation class H, ensuring reliability and safety in various applications, including electric vehicles.

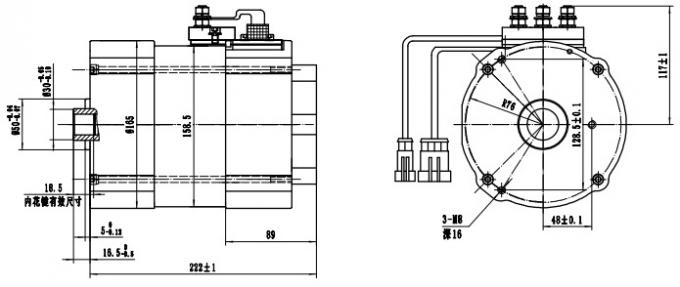

Motor parameter
Motor type: AC Induction Motor	Model: XQY3-60-H12
Rated voltage(V AC): 40	Battery voltage(V DC): 60
Rated power(kW): 3	Peak power(kW): 6.5
Rated torque(N·m): 9.55	Peak torque(N·m): 68
Rated speed(rpm): 3000	Peak speed(rpm): 6000
Insulation level: H	Protection level: IP54
Cooling method: Natural cooling	Work system: S2-60min
Number of pole-pairs: 2	Peak current(Arms): 275A

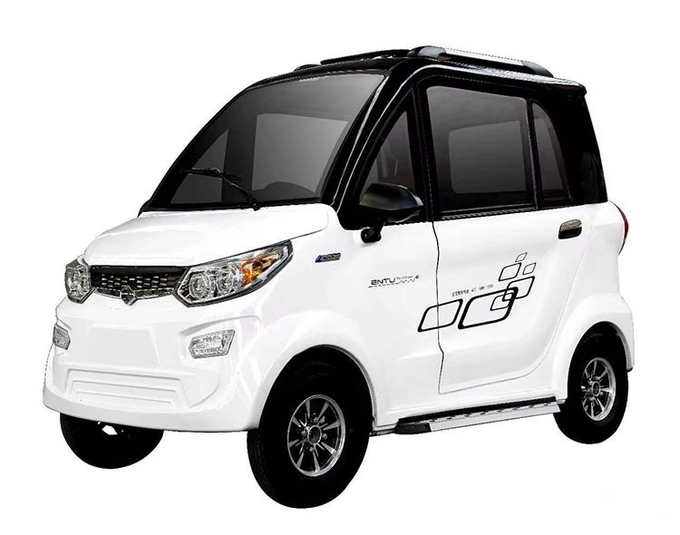

Main scope of application: Electric Mobility Scooter,Electric Sightseeing Vehicle,Club Car,Golf Cart (Electric)

Advantages

1.Smooth and reliable. Joined withtransaxle of vehicles with involutespline shaft,provide reliable and safeguarantee for vehicle.

2.Climbing ability. High startingtorque, greater speed range andhigher top speed, higher overloadcapability, whichwill supply big power for electric carand meet the climbing needs.

3.Long driving range of a singlecharge. Higher motorefficiency,provide the effectiveness

4.Durable in use,easy maintenance.
