Low Maintenance Cost 11.5kW AC motor for Electric Forklift

0 + Pieces sold in the past 30 days

Rated Power(KW):
11.5
Battery Voltage(V DC):
80
Rated Speed(Rpm):
1830
Peak Speed(Rpm):
4800rpm
Rated Torque(N·m):
60
Work System:
S2-60min
Protection Level:
IP54
Insulation Level:
H
Application:
Electric Forklift,Narrow Aisle Forklift,Floor Forklift,Warehouse Forklift,Electric Reach Forklift,Electric Counterbalanced Forklift
Highlight:
11.5kW electric forklifts motors, electric forklift motors IP54, electric forklifts motors 4800rpm

DESCRIPTION

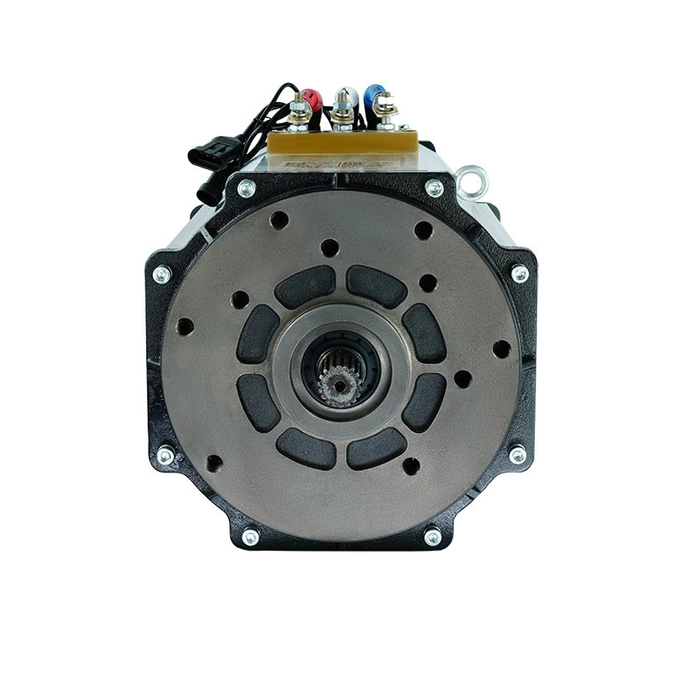

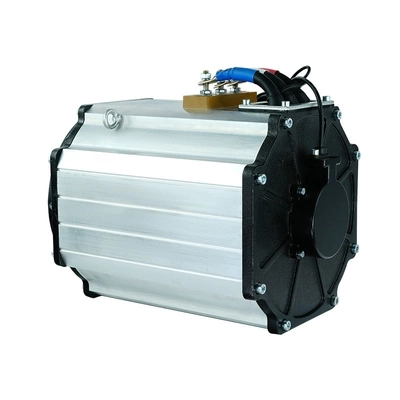

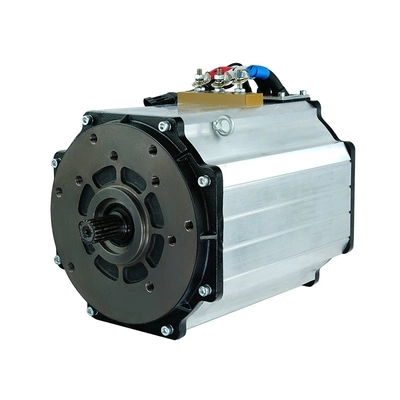

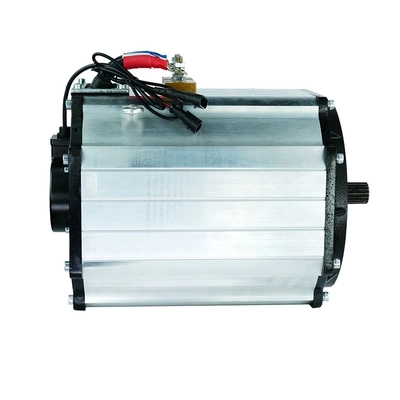

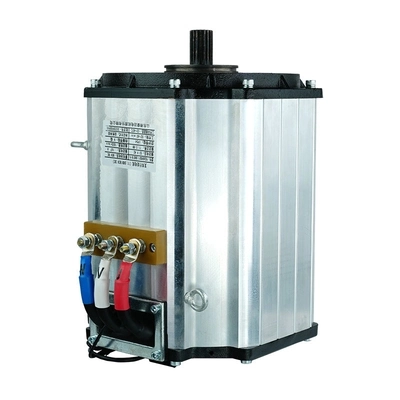

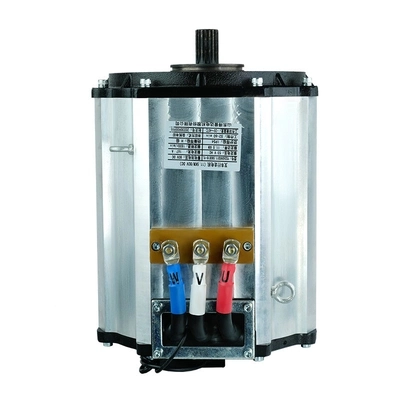

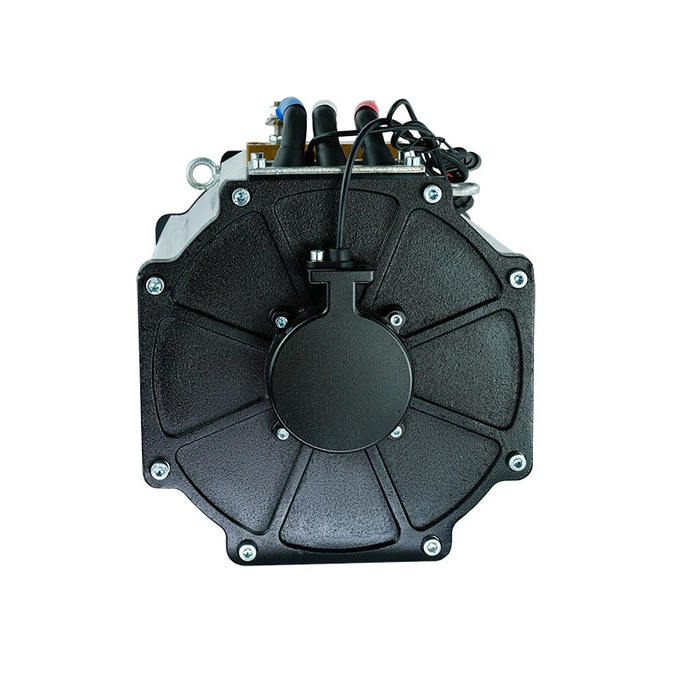

Low Maintenance Cost 11.5kW AC Motor for Electric Forklift
This 11.5kW AC motor is specifically designed for electric forklifts, offering high efficiency, low maintenance costs, and an extended service life. Utilizing advanced electromagnetic design and high-quality materials, it ensures stable operation and outstanding power output. The brushless structure of the AC motor significantly reduces maintenance requirements, minimizes downtime, and enhances overall forklift performance.
Key Features:
High Efficiency Output: Optimized electromagnetic design for improved energy conversion and reduced power consumption.
Low Maintenance Cost: Brushless design eliminates the need for frequent maintenance, reducing operational expenses.
Exceptional Durability: Constructed with high-quality copper winding and high-temperature insulation materials for long-term reliability.
Superior Reliability: Robust structure resistant to shock and vibration, suitable for various industrial environments.
Wide Compatibility: Compatible with multiple electric forklift models, with customizable mounting options available.

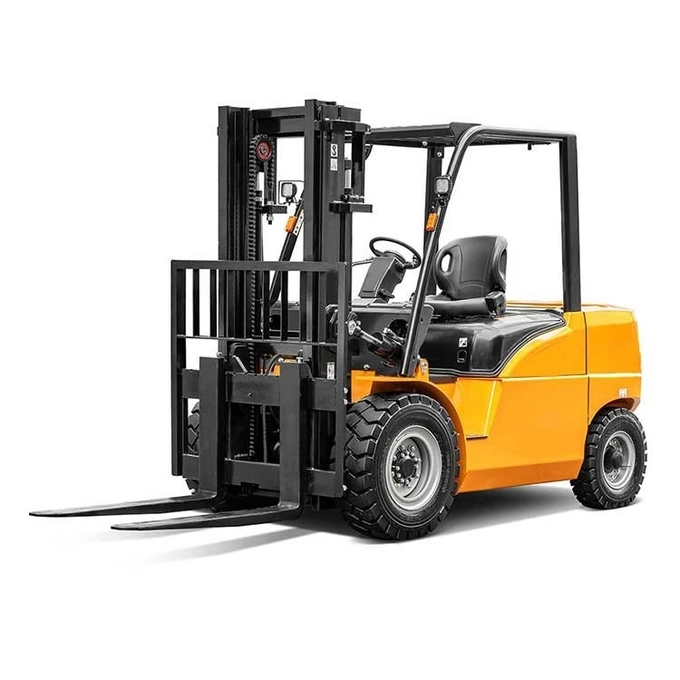

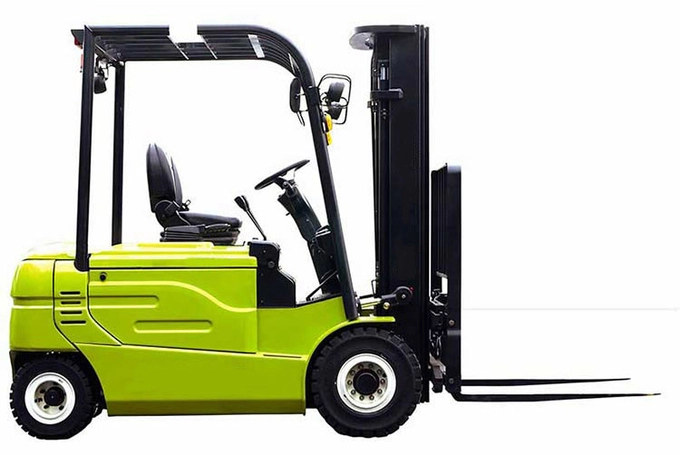

This motor is widely used in electric forklifts, electric tow tractors, and other industrial vehicles, providing a reliable power solution for logistics, warehousing, and manufacturing industries.

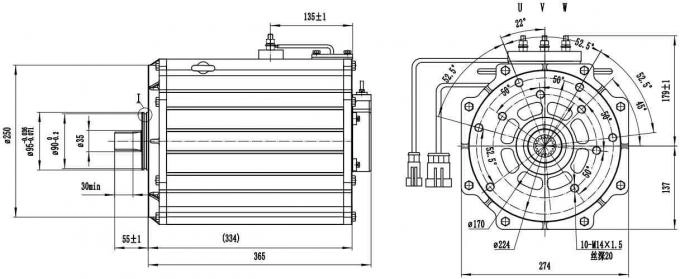

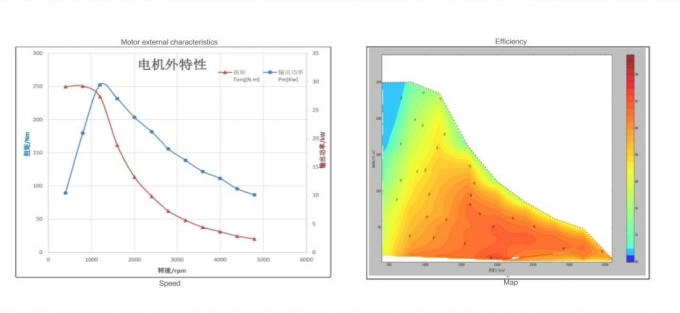

Motor parameter
Motor type: AC Induction Motor	Model: YS260HXQ11.580E18-YL
Rated voltage(V AC): 53	Battery voltage(V DC): 80
Rated power(kW): 11.5	Peak power(kW): 28
Rated torque(N·m): 60	Peak torque(N·m): 240
Rated speed(rpm): 1830	Peak speed(rpm): 4800
Insulation level: H	Number of pole-pairs: 2
Protection level: IP54	Work system: S2-60min
Rated current(Arms): 167	Peak current(Arms): 500

Advantages

1.Smooth and Reliable Performance: Designed to seamlessly integrate with the transaxle of vehicles using an involute spline shaft, this system ensures smooth operation and provides a reliable, safeguarded driving experience.

2.Enhanced Climbing Capability: With high starting torque, a wide speed range, and a higher top speed, this system offers superior overload capacity, delivering ample power to electric vehicles and meeting the demands of steep climbs.

3.Extended Driving Range: Thanks to its high motor efficiency, this system maximizes energy utilization, enabling a longer driving range on a single charge.

4.Durability and Low Maintenance: Built to last, this system is both durable and easy to maintain, ensuring long-term reliability and reduced upkeep costs.
