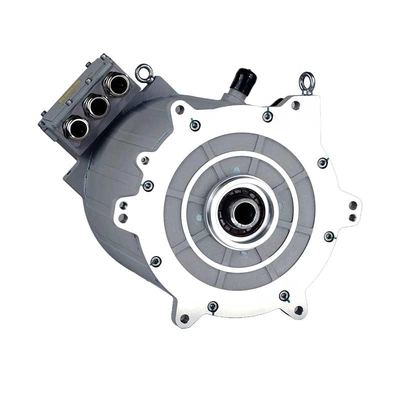

Premium Materials 120kW PMSM for Sanitation sweeper
Motor Type:
Permanent Magnet Synchronous Motor
Rated Power(kW):
120
Battery Voltage(V DC):
540
Rated Speed(rpm):
5730rpm
Peak Speed(rpm):
12000
Rated Torque(N·m):
200
Work System:
S9
Protection Level:
IP67
Insulation Level:
H
Application:
Heavy Truck
Highlight:
sanitation sweeper pmsm electric motor, 120kw pmsm motor, 120kw pmsm electric motor
- Fast Shipping
- Support OEM&ODM
- TOP Quality
- Professional Service
DESCRIPTION
Motor parameter | |
Motor type: Permanent Magnet Synchronous Motor | Model: TZ230XS120540N19-A01 |
Rated voltage(VAC): 380 | Battery voltage(V DC): 540 |
Rated power(kW): 120 | Peak power(kW): 200 |
Rated torque(N·m): 200 | Peak torque(N·m): 500 |
Rated speed(rpm): 5730 | Peak speed(rpm): 12000 |
Rated current(Arms): 186 | Peak current(Arms): 420 |
Insulation level: H | Protection level: IP67 |
Number of pole-pairs: 4 | Work system: S9 |

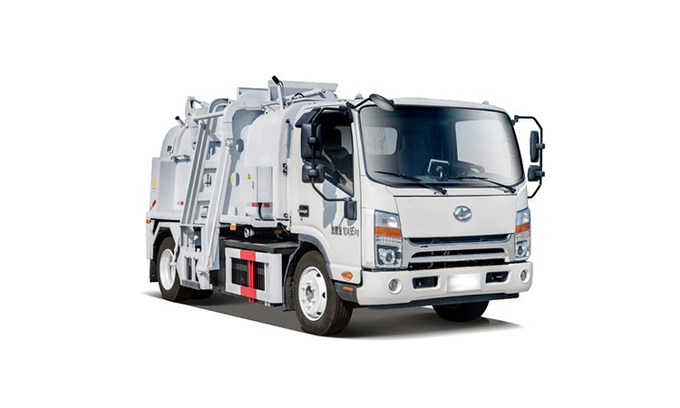

This permanent magnet synchronous motor is specifically designed for sanitation vehicles, providing an efficient, reliable, and environmentally friendly power solution for sanitation operations. With a rated power of 120 kW and a rated speed of 5730 rpm, it delivers robust power output for sanitation vehicles in various operation scenarios, meeting the demands of tasks such as street sweeping, road washing, and waste transportation. Utilizing permanent magnet synchronous technology, significantly reducing energy consumption, extending battery runtime, and lowering carbon emissions to meet environmental standards. The motor operates smoothly with low noise levels, enhancing the comfort and environmental friendliness of sanitation operations. With an IP67 protection rating, it offers excellent dustproof and waterproof performance, ensuring long-term reliable operation in harsh environments. Its compact design allows for easy installation, perfectly adapting to the space layout of sanitation vehicles while reducing overall weight and improving vehicle flexibility and operational efficiency. It is widely used in street sweepers, road washers, waste transport vehicles, and other sanitation equipment. Optional features such as temperature sensors, encoders, and customized mounting interfaces are available to meet diverse customer needs. Choose our permanent magnet synchronous motor for sanitation vehicles to provide your equipment with efficient and eco-friendly power support!
