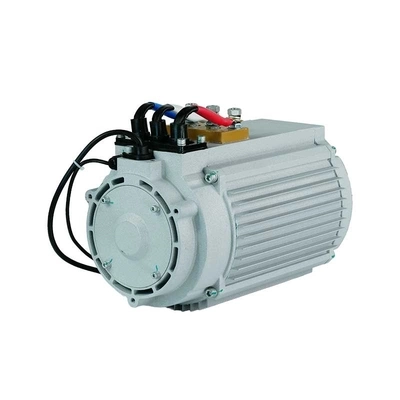

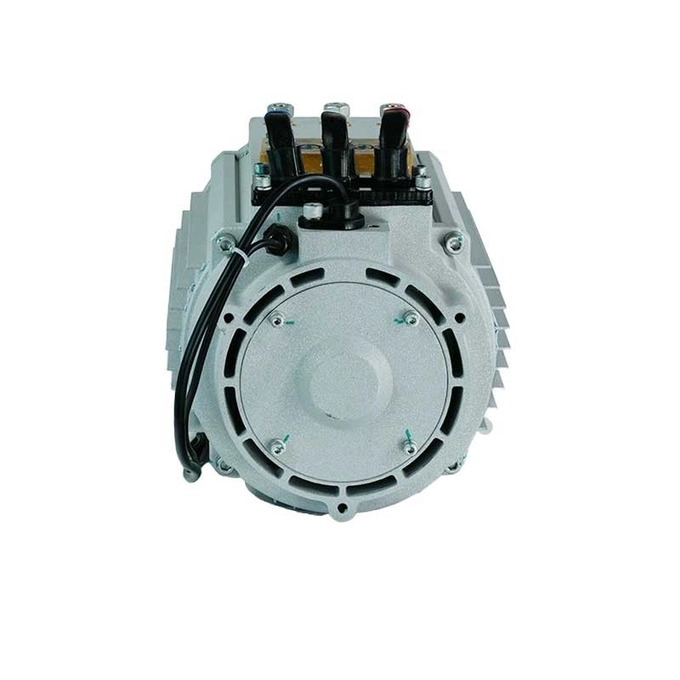

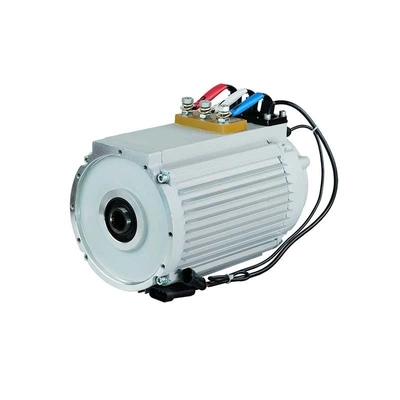

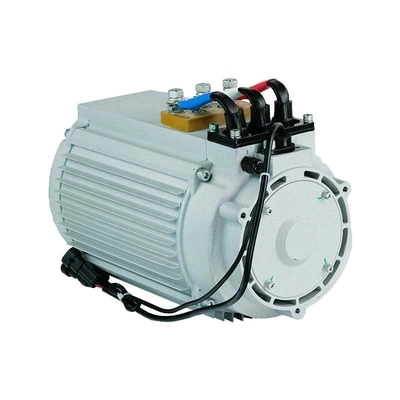

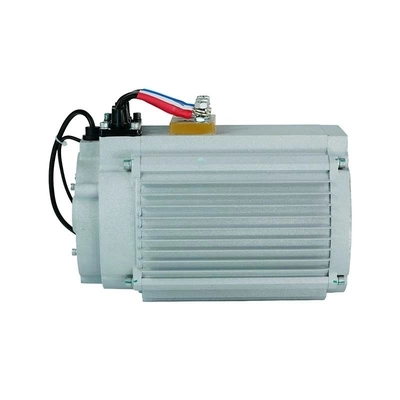

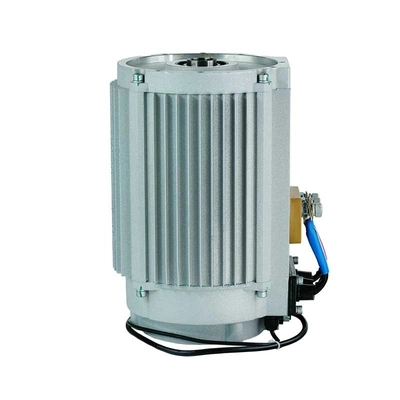

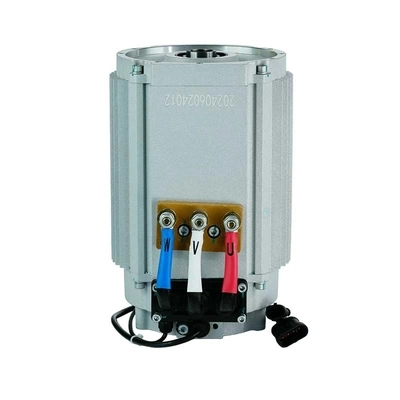

Reasonably Designed 6.3kW AC Motor For Electric Patrol Vehicle

0 + Pieces sold in the past 30 days

Motor Type:

AC Induction Motor

Rated Power(kW):

6.3

Battery Voltage(V DC):

Rated Speed(rpm):

3000

Peak Speed(rpm):

6000 Rpm

Rated Torque(N·m):

20.1

Work System:

S2-60min

Protection Level:

IP54

Insulation Level:

Application:

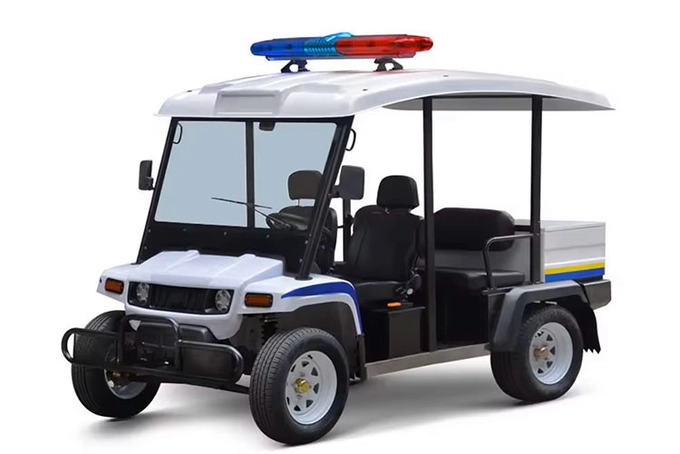

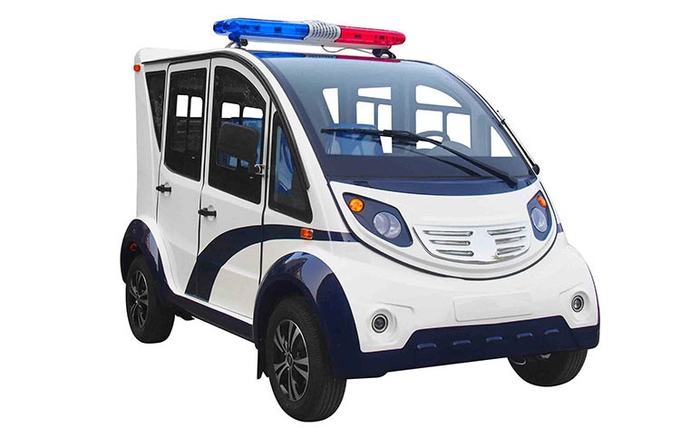

Electric Patrol Vehicle,Electric Hunting Vehicle,Electric Golf Cart

Highlight:

IP54 6.3 kw ac motor,Patrol Vehicle 6.3 kw ac motor,Electric Patrol Vehicle ac motor

DESCRIPTION

High-Efficiency and Reliable Operation: The Depuda YS155H6.348N19 three-phase induction motor boasts ensuring reliable operation and minimal energy consumption in various applications, including Golf Cart(Electric).

Durable and Protected Design: With a totally enclosed protection feature and IP54 protection level, this motor is designed to withstand harsh environments and provide long-lasting performance.

Wide Range of Applications: This motor is suitable for various Electric Patrol Vehicle,Electric Hunting Vehicle,Electric Golf Cart applications, including those requiring a peak speed of 5800r/min and a rated speed of 3000r/min.

User-Friendly Warranty: The product comes with a comprehensive warranty of 3 months to 1 year, providing peace of mind for users and ensuring timely support in case of any issues.

Compliant with International Standards: As a product of Depuda, a renowned brand from China, the YS155H6.348N19 motor meets international standards for quality and performance, making it a reliable choice for users worldwide.

Motor parameter
Motor type: AC Induction Motor	Model: YS155H6.348N19
Rated voltage(V AC): 32	Battery voltage(V DC): 48
Rated power(kW): 6.3	Peak power(kW): 11
Rated torque(N·m): 20.1	Peak torque(N·m): 59
Rated speed(rpm): 3000	Peak speed(rpm): 6000
Rated current(Arms): 157	Peak current(Arms): 400
Number of pole-pairs: 2	Work system: S2-60min
Insulation level: H	Protection level: IP54

Advantages

1.Smooth and reliable. Joined withtransaxle of vehicles with involutespline shaft,provide reliable and safeguarantee for vehicle.

2.Climbing ability. High startingtorque, greater speed range andhigher top speed, higher overloadcapability, whichwill supply big power for electric carand meet the climbing needs.

3.Long driving range of a singlecharge. Higher motorefficiency,provide the effectiveness

4.Durable in use,easy maintenance.
